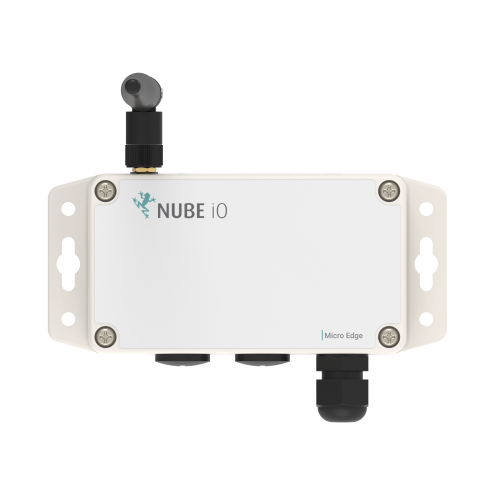

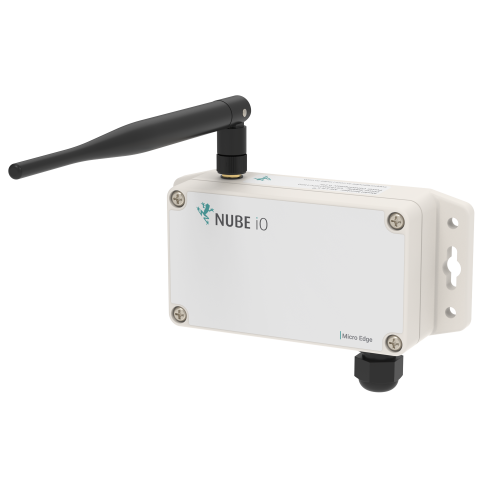

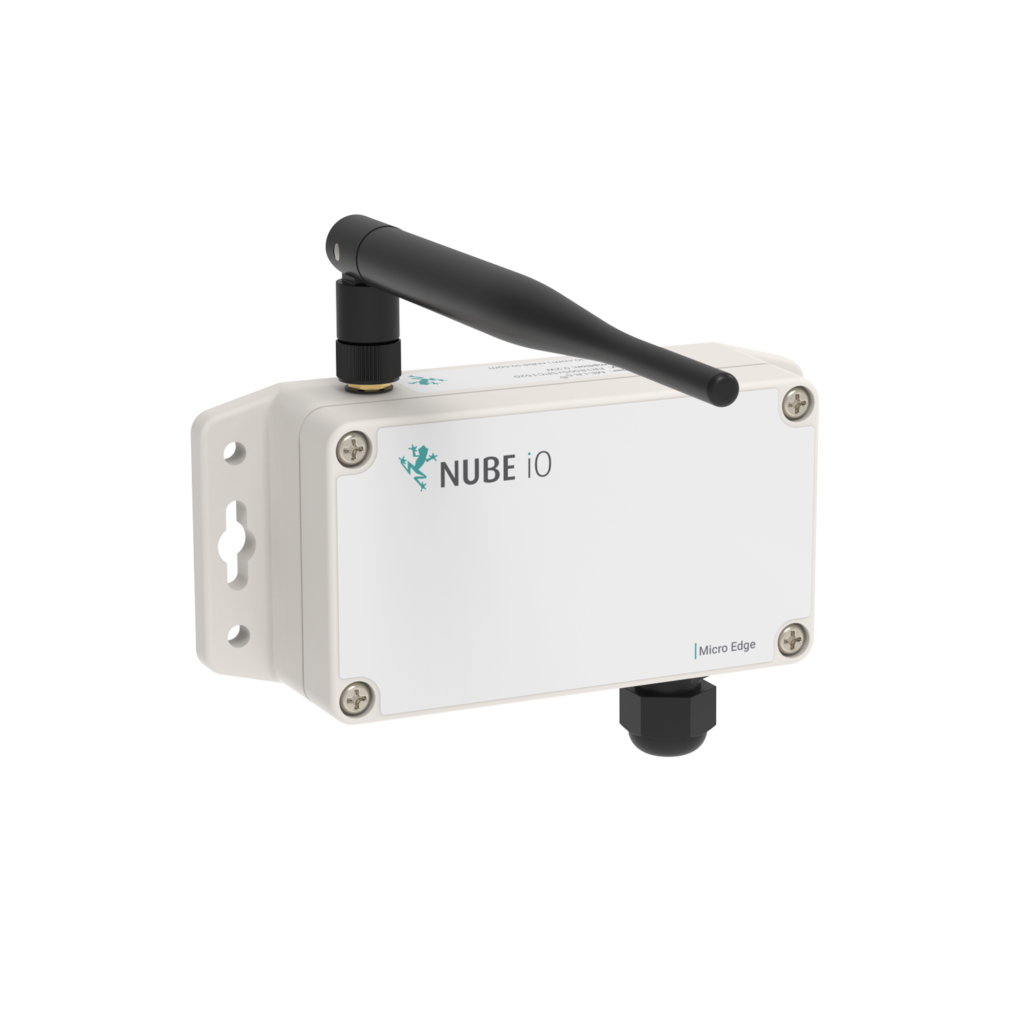

The Micro Edge is Nube iO’s very own LoRa IoT asset monitoring sensor. The Micro Edge has been specifically designed for low cost monitoring and collecting of data from machine and asset usage.
- 1x pulse input for and accumulation of the pulse count for a water or electrical meter
- 3 x universal inputs
- Transmission range: 2km line of sight or 100m in a dense environment
- Power: Battery powered using 3x AA batteries or 24V AC/DC
- Transmission protocol: LoRa transmission (915Mhz)
- Life span: 5-7 years dependent on push rate and environmental conditions
- Supported Frequencies: 915Mhz
- Temperature and 0-10V DC sensor monitoring
LoRa Wireless Comms
5 Year Battery Life
3 Analogue inputs, 1 pulse input
Up to 2KM transmission range
ME-LR-4
| LoRa Capabilities | Number |
|---|---|
| Supported Frequencies | 868/915Mhz |
| Spreading Factor | 6-12 |
| Bandwidth | 7.8 - 500 kHz |
| Effective Bitrate | .018 - 37.5 kbps |
| Est. Sensitivity | -111 to -148 dBm |
| General Specs | |
|---|---|
| Max Pulse Count | 2,147,483,647 |
| Transmit Frequency | 915 MHzConsumption 100 mA or Batteries: 3xAA |
| Number of Inputs | 4 |
| Input types | Thermistor, PIR, 0-10V, Pulse Meter, Reed Switch... etc |
| Batteries | 3x AA |
| Storage Writes | - 1,000,000,000,000 |
| Data Retention | 10 years ( + 85 °C), 95 years ( + 55 °C), over 200 years ( + 35 °C) |
| :Push Intervals (User Configurable) | 1 Minute, 5 Minutes, 15 Minutes, 30 Minutes, 1 Hour, 3 Hours, 10 Hours, 12 Hours, 24 Hours |
| Enclosure | IP65 Waterproof Enclosure |
| VCC | 2.3v ~ 5v |
| Operating Temperature | -40 ~ 85°C |
| Power Specs | |
|---|---|
| Battery | 3 x AA |
| 24V AC/DC | Power Supply: 24VAC +/- 3% or 24VDC +10%/-10% Consumption 100 mA or Batteries: 3xAA |
Why LoRa
LoRa is a low-power, long-range wireless technology designed for the Internet of Things. It is less affected by buildings and other obstructions than regular WiFi, with one gateway generally being able to provide coverage for a 70x70m 3-story building.
LoRa is expected to hold 75% of the IoT device market share soon. The LoRa community is expanding rapidly, with many new contributions and developments occurring every day.
Considering LoRa transmission messages are very small, around 50 bytes, less power is required than say to make a phone call or upload a photo. Using LoRa, our sensors can achieve a 5+ year battery life when pushing data once a day. Alternatives either cannot transmit the required distance, or are too costly to do so.
LoRa runs on a low radio frequency, which enables the transmission to penetrate common building obstacles such as furniture, walls, pipes and even concrete. Our LoRa Raw devices can transmit around 100m in a commercial building, which is impressive considering the weaker penetration of WiFi.
The LoRa community is very active and open, comprising of companies and individuals who are further developing LoRa and LoRaWAN. Because of this, the technology is constantly improving and there is lots of available support online and through forums. This is different from legacy, proprietary software.
Rubix Compute
Rubix IO
Droplet
Micro Edge
 3x Wireless Receivers |  Web-based software |  2x RS485 terminals |  Dual Ethernet |  LED Indicators |  32 Bit Processor |  4GB storage |  Din Rail Mounted |  24V AC/DC Power |  No IO |
LoRa Device | 1x RS485 terminal |  6 Universal Inputs | 2 Universal Outputs | 2 Digital Outputs | 24V AC/DC Power | 32 Bit Processor | Din Rail Mounted |
 |  Humidity |  Lux Levels |  Temperature |  Motion (PIR) | LoRa Wireless Transmission | Battery Powered |  IP40 Protection | No IO | |
| | 3x Universal Inputs | 1x Pulse Input | LoRa Wireless Transmission | Battery Powered | IP66 Protection | No Outputs | | |
