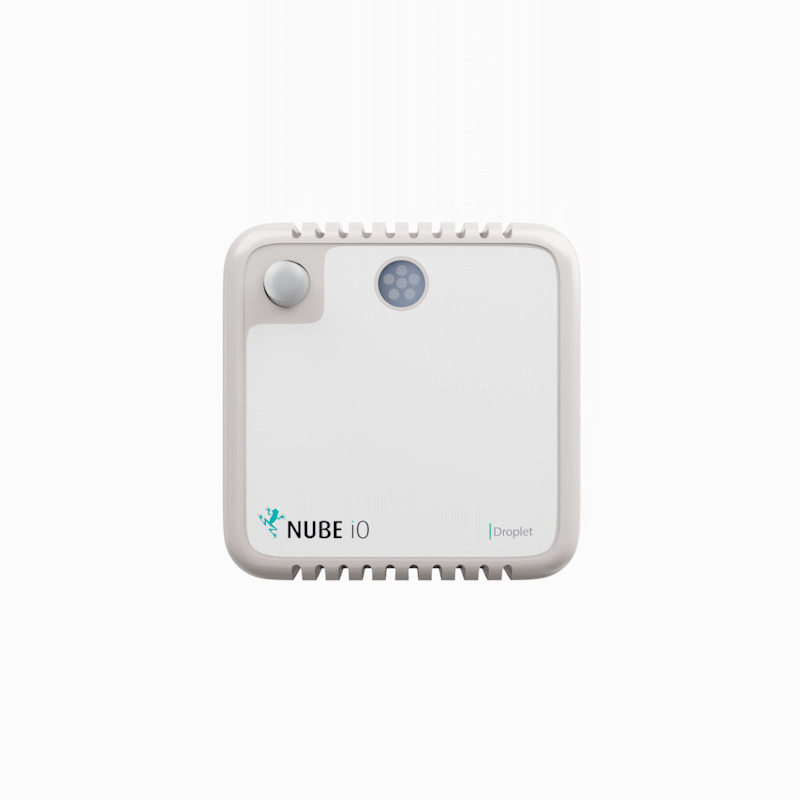

The Droplet is Nube iO’s very own LoRa IoT sensor, which has been built to address the problem of wanting multiple points of data capture with minimal time for install and wiring. LoRa wireless IoT sensor technologies requires less power, meaning it can be battery powered using AA batteries and still achieve a large transmission distance.
- Temp, humidity, lux and motion monitoring
- Multiple points of data capture in one device
- 5 year battery life
- LoRa wireless protocol
- Up to 2KM transmission range
- Easy install with no cabling required
LoRa Wireless Comms
5 Year Battery Life
Temp, humidity, lux, motion
Up to 2KM transmission range
| Model Number | Description |
|---|---|
| DL-TH | Temp and Humidity |
| DL-THL | Temp, humidity, lux |
| DL-THLM | Temp, humidity, lux and motion |
| LoRa Capabilities | Number |
|---|---|
| Supported Frequencies | 868/915Mhz |
| Spreading Factor | 6-12 |
| Bandwidth | 7.8 - 500 kHz |
| Effective Bitrate | .018 - 37.5 kbps |
| Est. Sensitivity | -111 to -148 dBm |
| Sensor Specs | |
|---|---|
| Temperature Sensor | @25°C ± 0.5°C, from 0...65°C ±1°C |
| Humidity Sensor | -40°C -> 85°C, Resolution .008 %RH |
| PIR Sensor |  |
| Light Sensor | Range of 1 - 65535lx |
3x AA batteries
3-5 year Lifespan depending on environmental conditions and push rate.
Why LoRa
LoRa is a low-power, long-range wireless technology designed for the Internet of Things. It is less affected by buildings and other obstructions than regular WiFi, with one gateway generally being able to provide coverage for a 70x70m 3-story building.
LoRa is expected to hold 75% of the IoT device market share soon. The LoRa community is expanding rapidly, with many new contributions and developments occurring every day.
Considering LoRa transmission messages are very small, around 50 bytes, less power is required than say to make a phone call or upload a photo. Using LoRa, our sensors can achieve a 5+ year battery life when pushing data once a day. Alternatives either cannot transmit the required distance, or are too costly to do so.
LoRa runs on a low radio frequency, which enables the transmission to penetrate common building obstacles such as furniture, walls, pipes and even concrete. Our LoRa Raw devices can transmit around 100m in a commercial building, which is impressive considering the weaker penetration of WiFi.
The LoRa community is very active and open, comprising of companies and individuals who are further developing LoRa and LoRaWAN. Because of this, the technology is constantly improving and there is lots of available support online and through forums. This is different from legacy, proprietary software.
Rubix Compute
Rubix IO
Droplet
Micro Edge
 3x Wireless Receivers |  Web-based software |  2x RS485 terminals |  Dual Ethernet |  LED Indicators |  32 Bit Processor |  4GB storage |  Din Rail Mounted |  24V AC/DC Power |  No IO |
LoRa Device | 1x RS485 terminal |  6 Universal Inputs | 2 Universal Outputs | 2 Digital Outputs | 24V AC/DC Power | 32 Bit Processor | Din Rail Mounted |
 |  Humidity |  Lux Levels |  Temperature |  Motion (PIR) | LoRa Wireless Transmission | Battery Powered |  IP40 Protection | No IO | |
| | 3x Universal Inputs | 1x Pulse Input | LoRa Wireless Transmission | Battery Powered | IP66 Protection | No Outputs | | |
